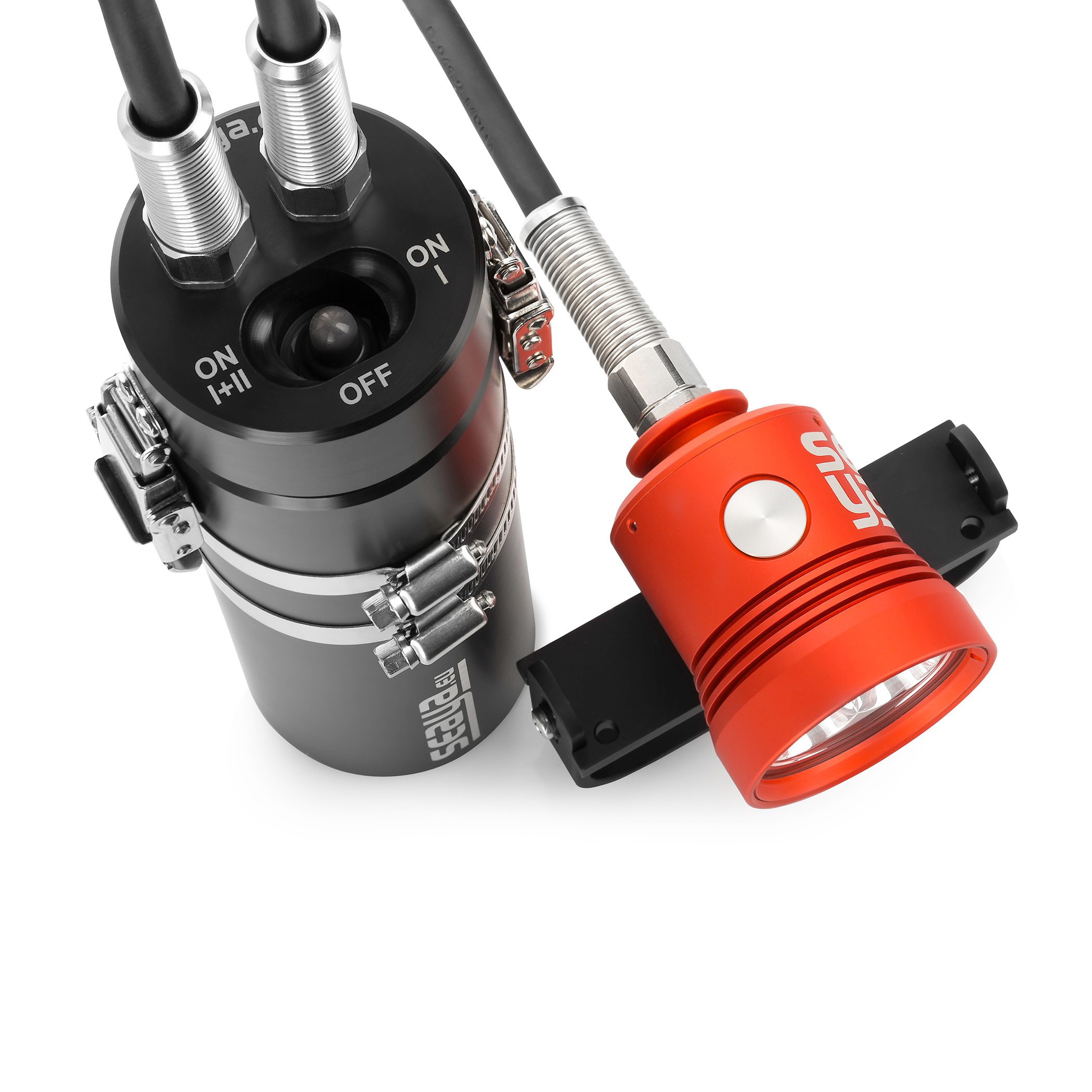

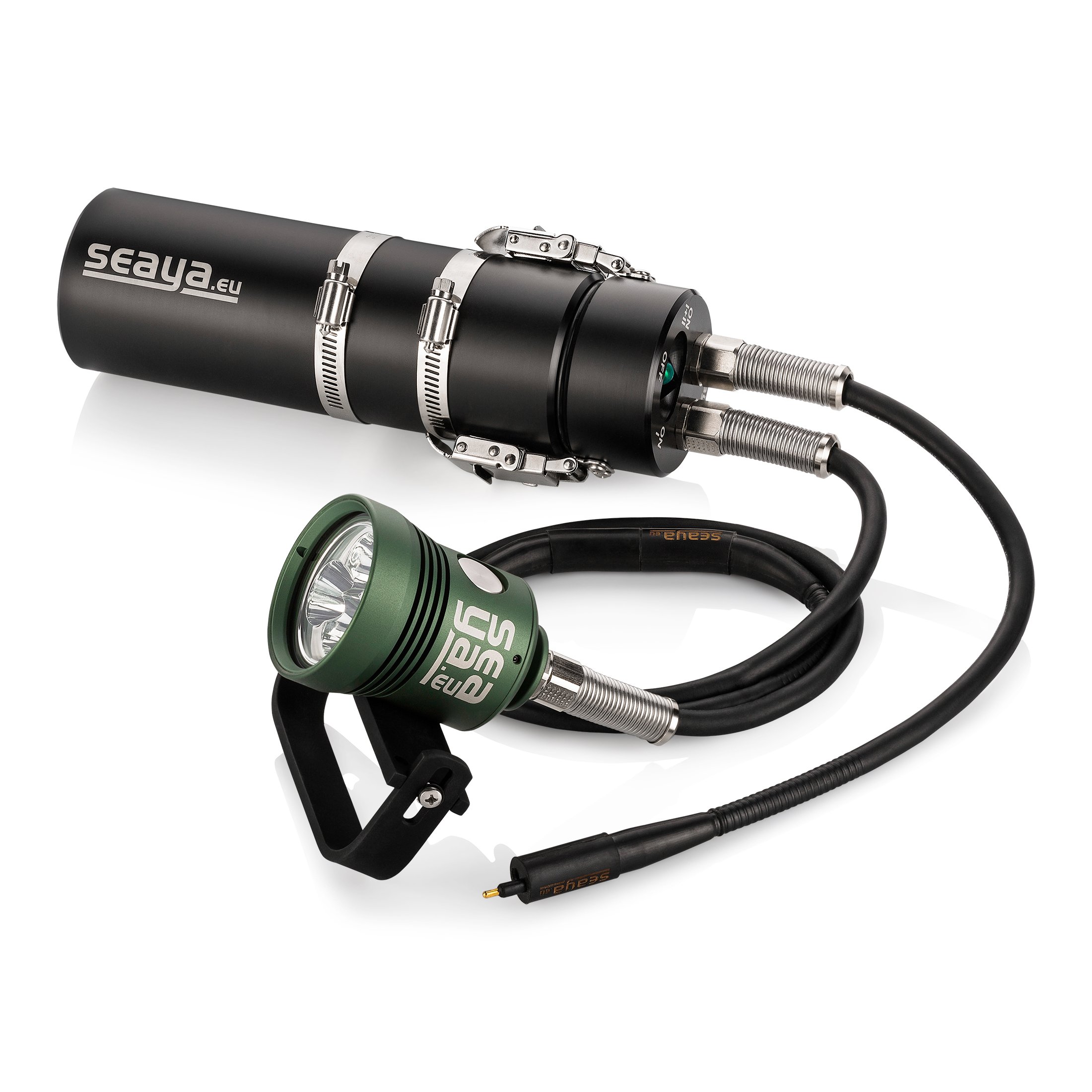

For this lighting setup, output 1 (light head to battery) is hard-wired by default, while output 2 is E/O. Both can be upgraded to E/O for an extra charge.

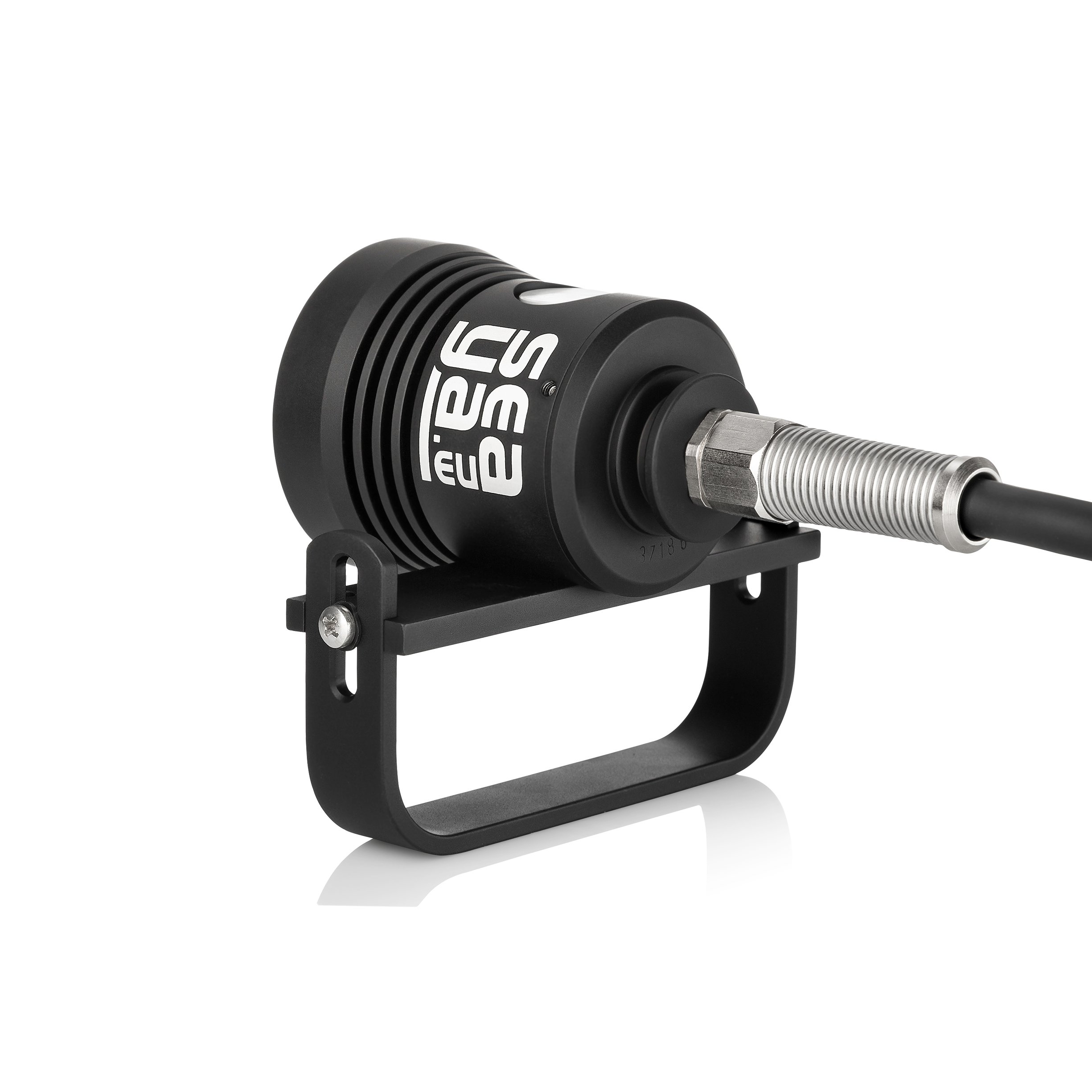

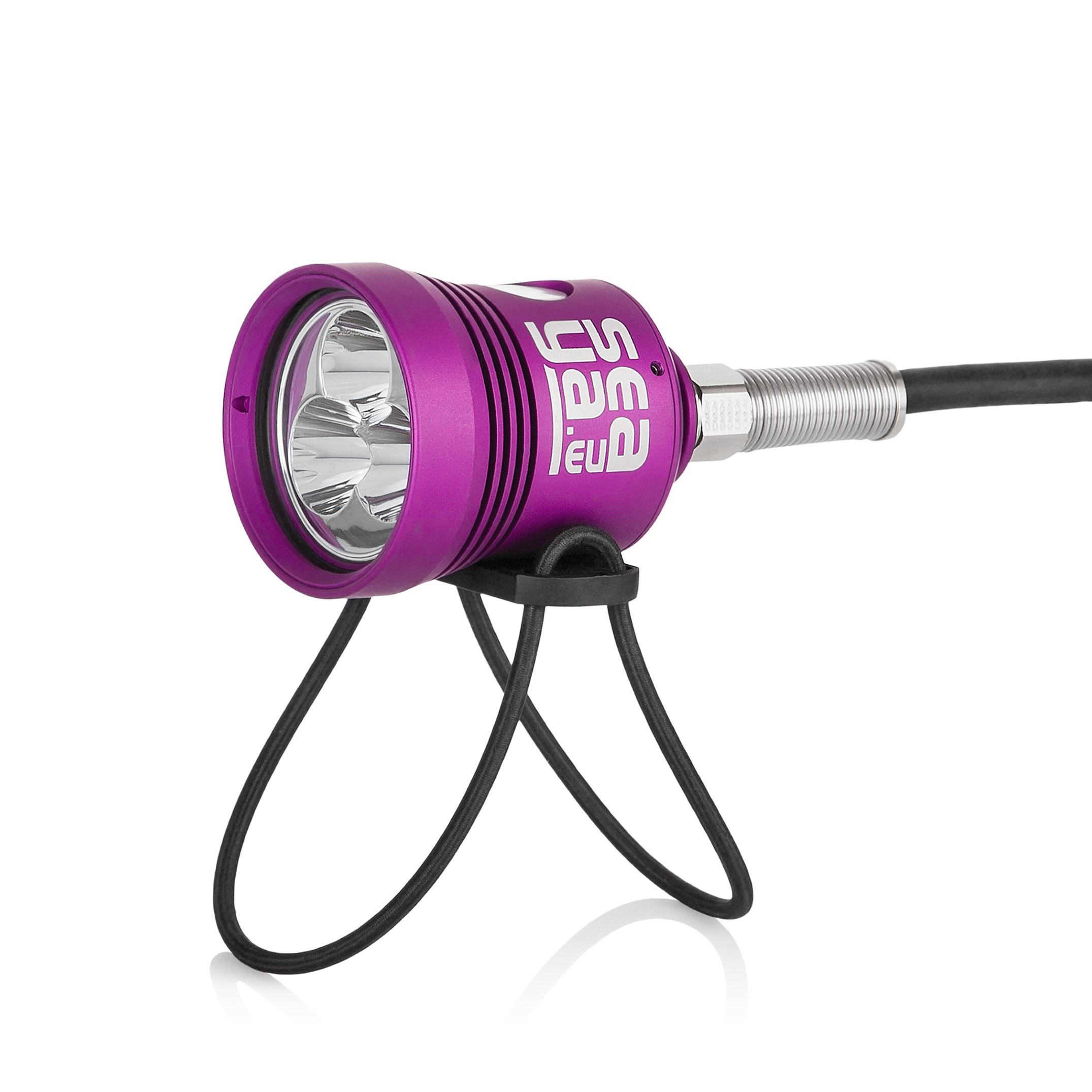

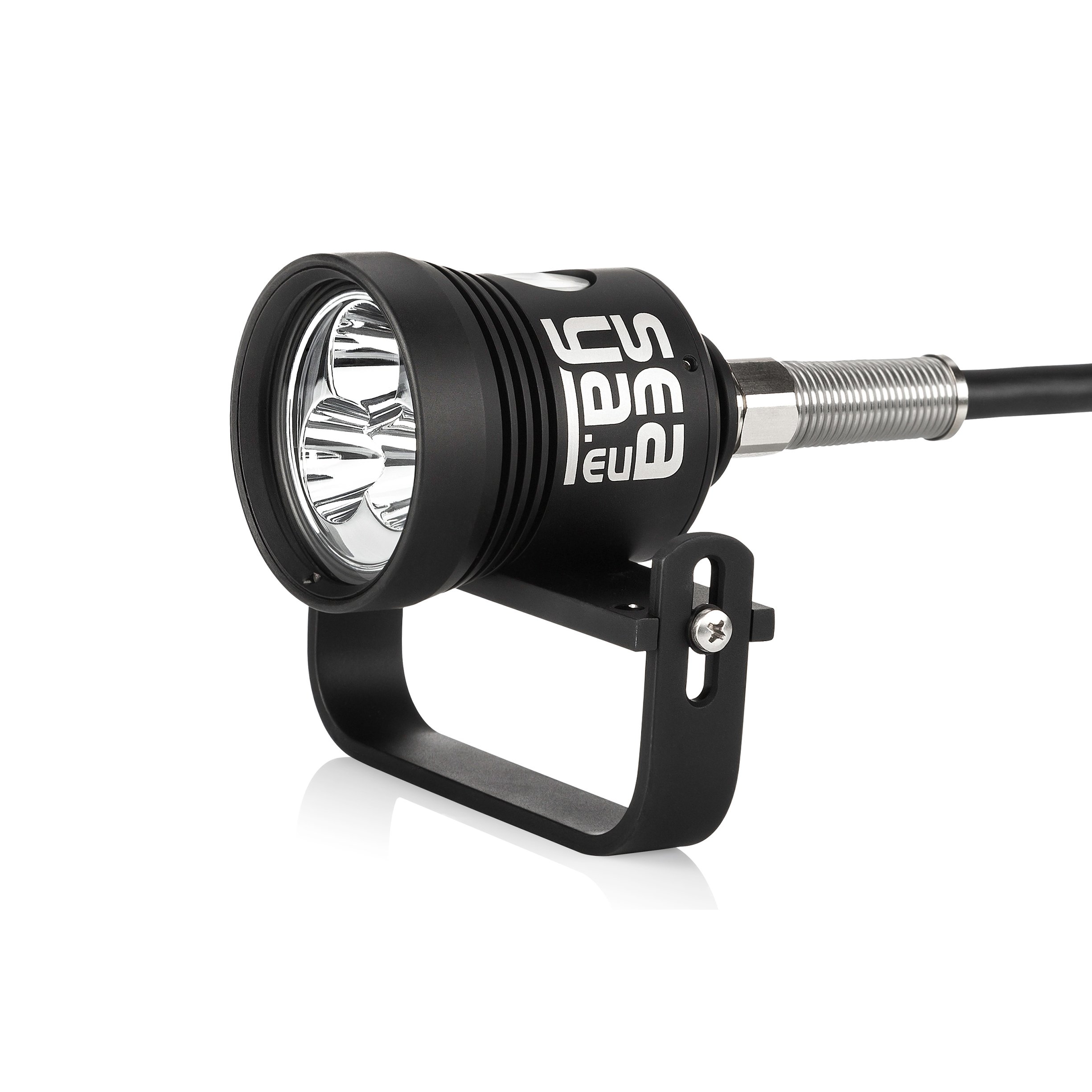

The SeaYa LED 30W NARROW Light Head packs powerful performance into a compact design, with premium components from Europe and the US. Its durable yet lightweight anodised aluminium body makes it a go-to companion for tech divers. Offering 3600 lumens and a narrow 6° beam, this light head excels in communication during low-visibility dives, with a maximum depth rating of 150m. The adjustable Goodman handle ensures comfort, and the piezo push-button switch allows you to switch the level between 100% and 50%.

Intelligent electronics maintain stable output and gradually dim brightness, as the battery depletes, giving divers ample time to complete their dive safely while maximising battery life. Equipped with active and passive thermal management, the SeaYa 30W NARROW prevents overheating and reducing light output in extreme conditions.

The battery packs use Panasonic Li-Ion cells in a 3S configuration, compatible with lighting and drysuit heating systems. They feature safety circuits to prevent overcharge, deep discharge, overload, and short circuit, and are UN38.3 certified for safe transport.

FEATURES:

• 3x CREE® XP-L HI

• Lumen output: max. 3600lm

• Power: max. 30W

• Light angle: 6°

• Light temperature: 5700K

• Head piezo push-button mode: 100%-50% (OFF at additional charge)

• Type of handle: Goodman or Mini-G

• Battery switch: classic toggle

• Battery capacity:

  • 9Ah-120W

  • 13.8Ah-170W

  • 24.15Ah-200W

  • 41.4Ah-200W

• Charging time:

  • 13.8Ah: 4.5 hours (SY-CHARGLI-4A charger)

  • 24.15Ah: 8 hours (SY-CHARGLI-4A charger)

  • 41.4Ah: 8.5 hours (SY-CHARGLI-6A charger)

• Material:

  • Head: anodised aluminum

  • Battery: DELRIN® (POM-C)

• Head dimensions (length x diameter): 74mm x 64/55mm

• Weight on the surface:

  • Head with 13.8Ah battery: 2kg

  • Head with 24.15Ah battery: 2.6kg

  • Head with 41.4Ah battery: 3.6kg

• Colour:

  • Head: black, red, blue, green, fuchsia, gold

  • Battery: black. blue

• Max depth: 150m

CONTACT US TO ORDER
